Regex test cases compare a pattern’s result with an expected match or non-match for each supplied value. PatternBench checks up to 50 cases with fresh JavaScript regex state for each value.
Free to use. No account, email address or trial. Your work stays in your browser.
Use anchors when the whole reference must match. Without them, finding a matching substring may be insufficient for the rule you intend to check.

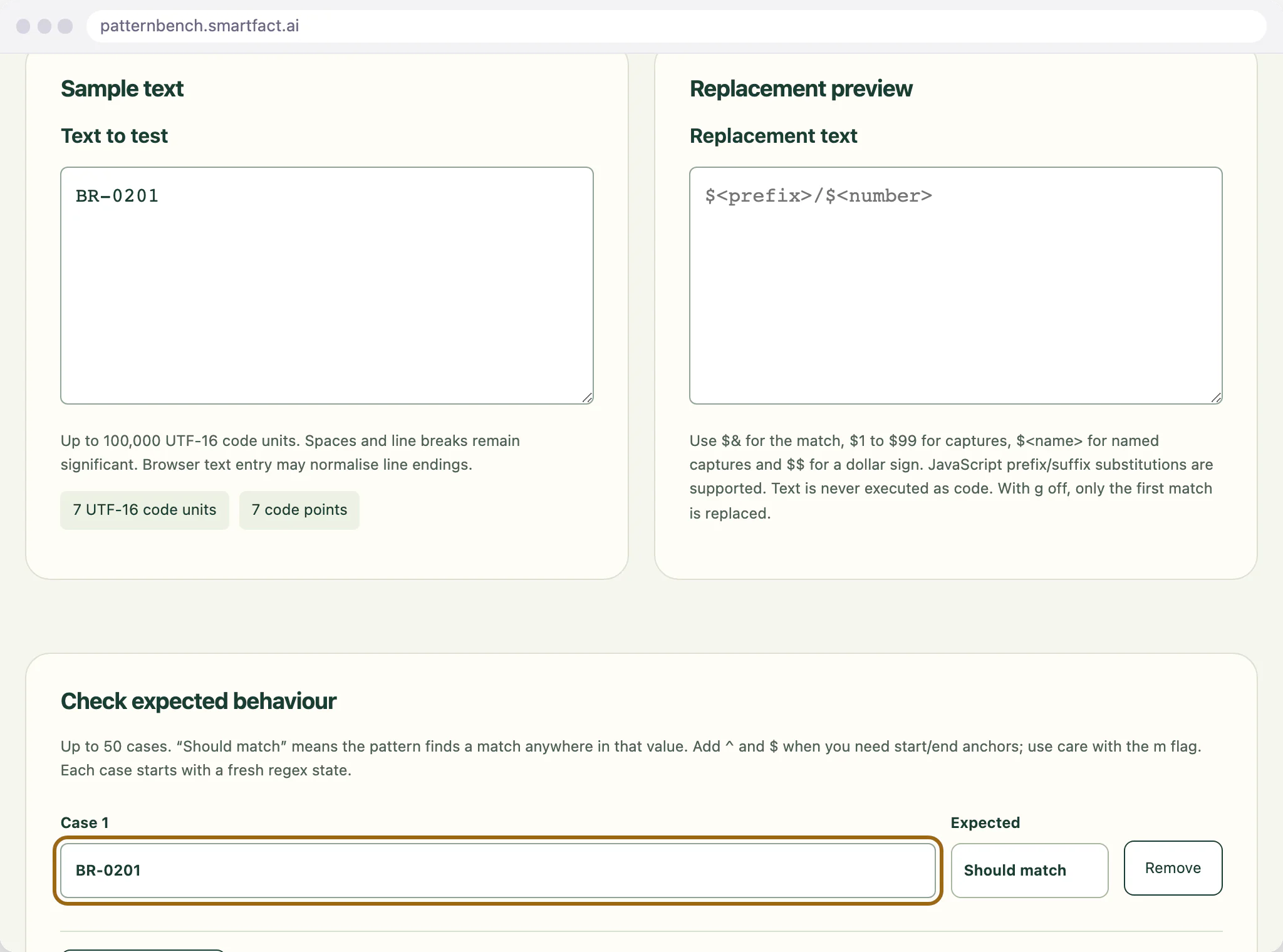

Add a positive case and state the expected match. Include representative boundaries, such as the exact permitted number of digits. Each case can contain up to 2,000 UTF-16 code units.
Add a negative case and select the non-match expectation. Run the cases and compare actual results with expectations, including rejected values rather than checking successes alone.
Up to 50 cases can help expose mistakes, but do not prove correctness for every input. Runs use a disposable worker with cancellation and a 1.5-second limit. Generated snippets do not inherit those protections. This is not a Jest or JUnit suite exporter. Save a local project JSON file explicitly if you need to keep your work.
For developers, integrators and people checking exact values before using them in another system.
A USEFUL STARTING POINT
A pattern can accept the correct reference and still accept an incorrect one. State both expected outcomes before running the cases so that overly broad matches become visible.
FROM QUESTION TO EVIDENCE

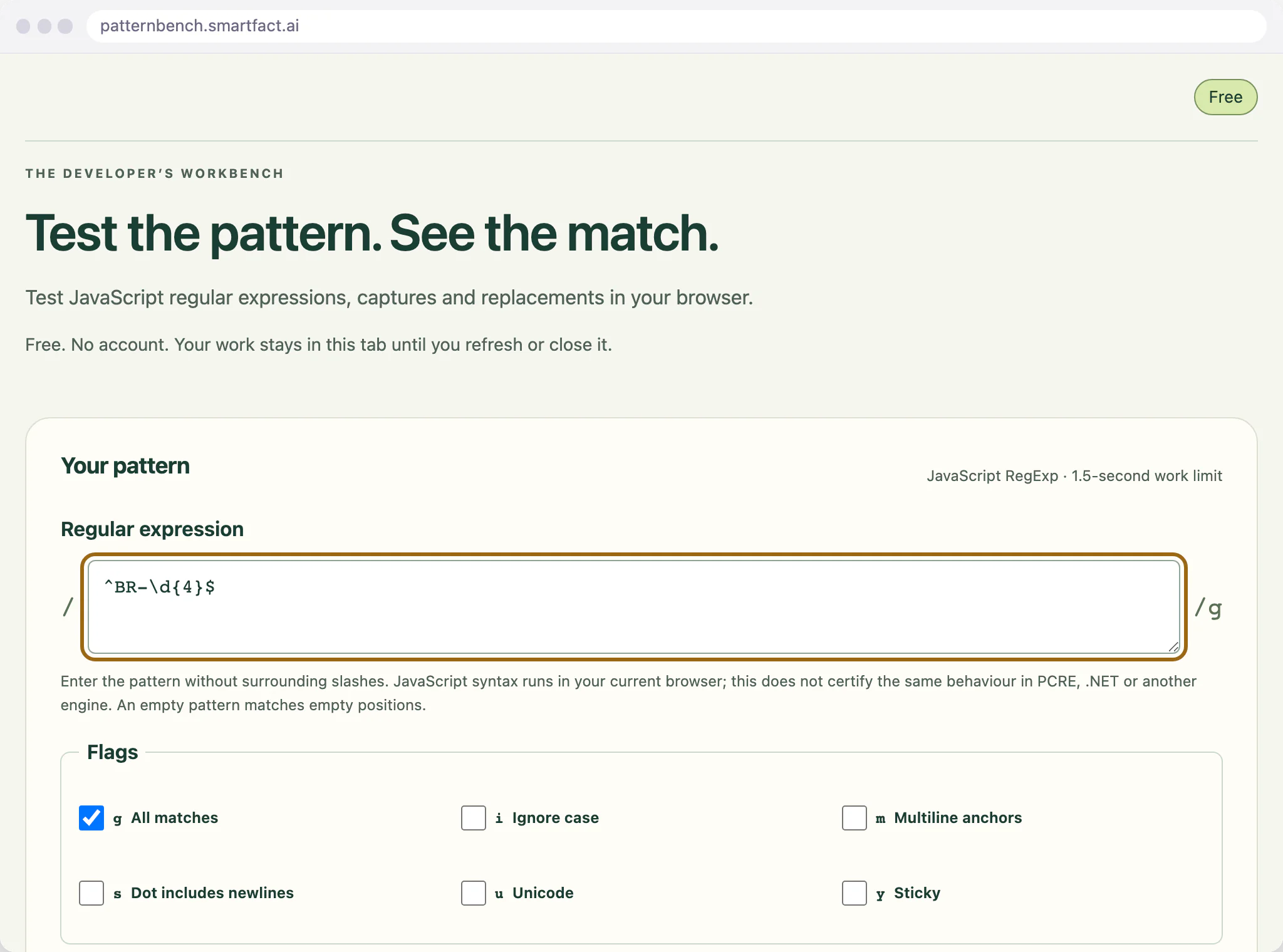

Enter the pattern and intended whole-value boundary.
Add values that should match and values that should not.

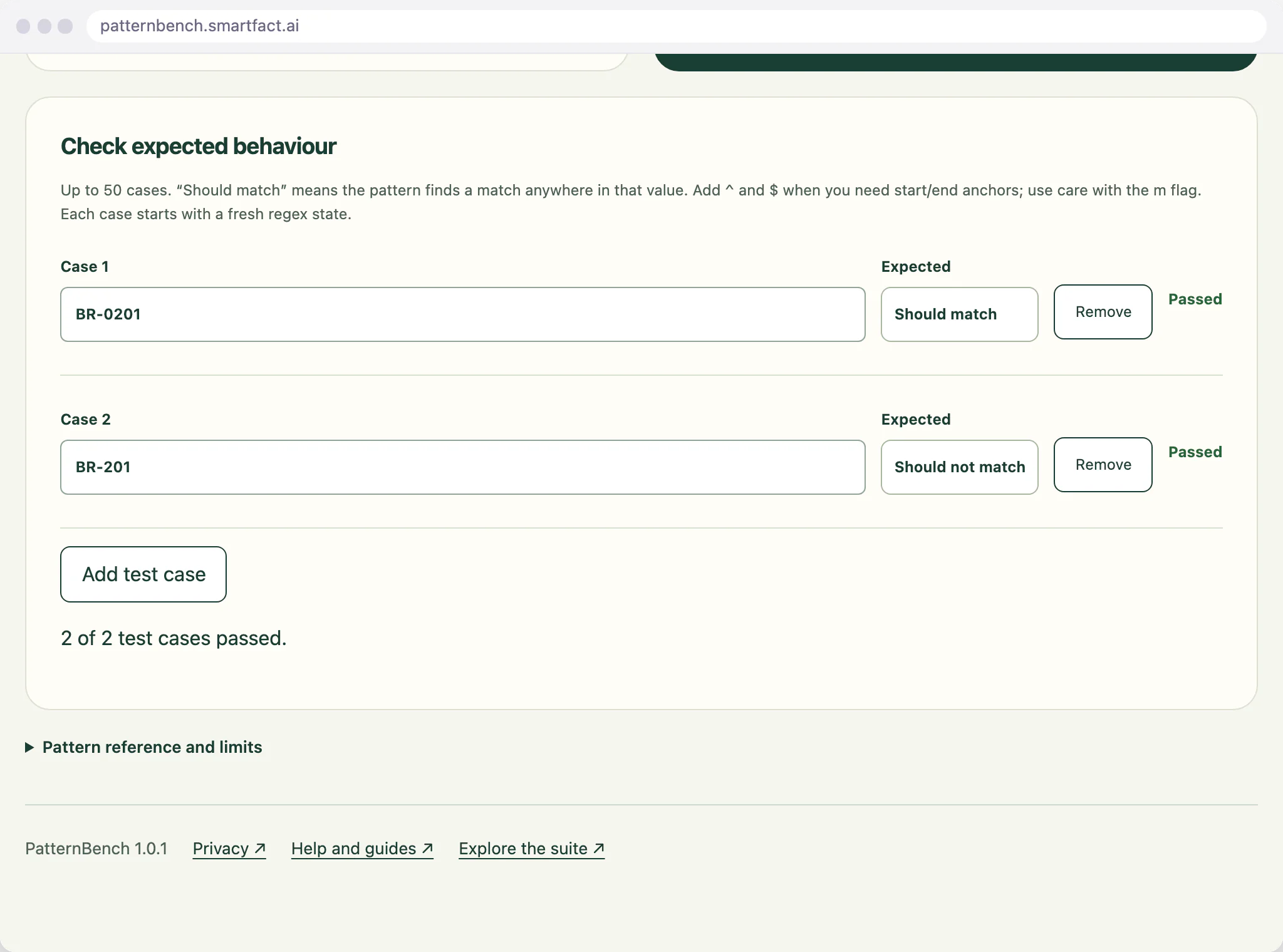

Run cases and read actual results against expectations.

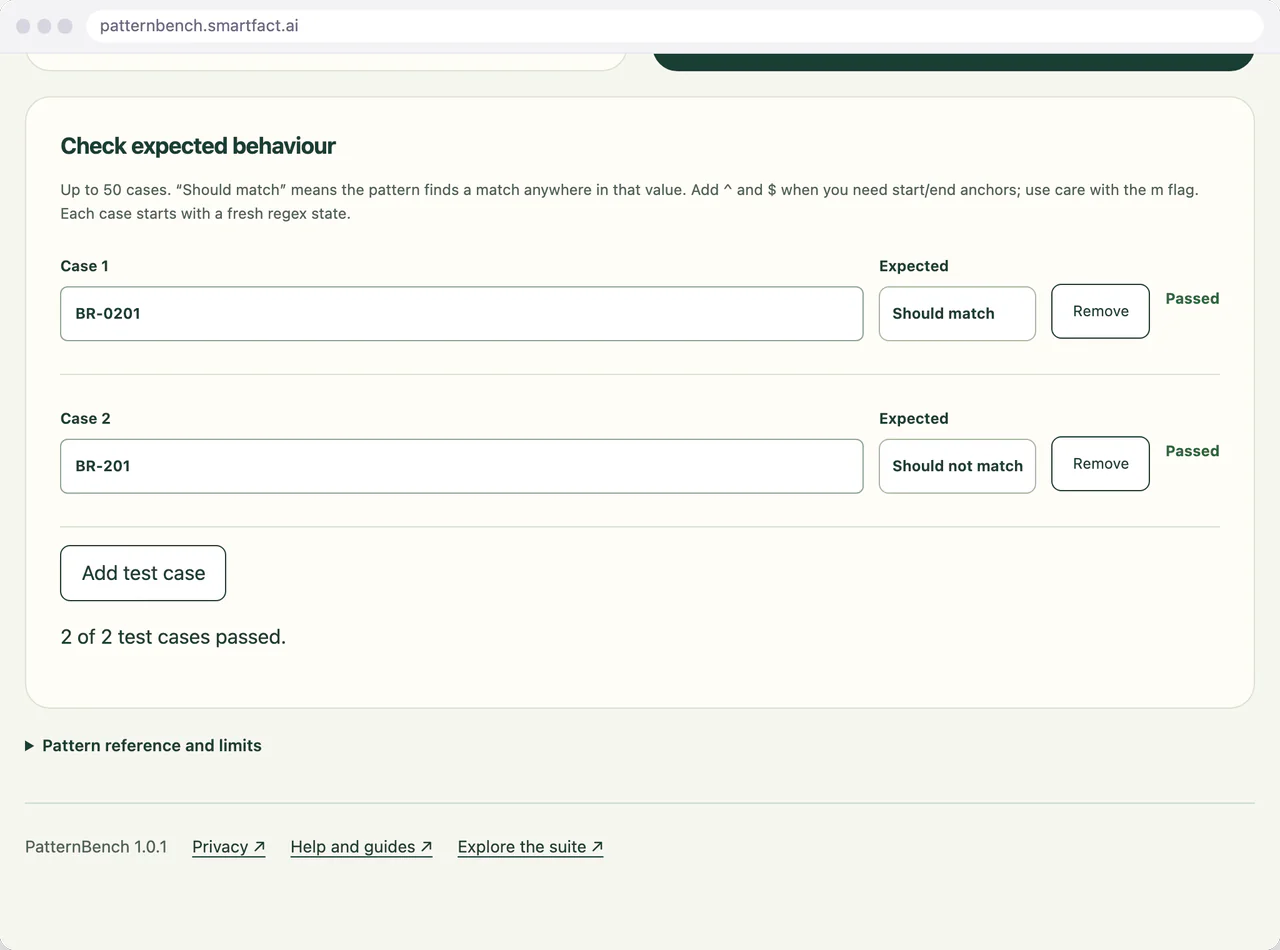

For a reference made from two uppercase letters, a hyphen and four digits, check a correct reference and a near miss with the wrong digit count. Neither a pass nor a match proves that the reference exists in a database.
WHEN CHECKS REPEAT
These SmartFACT services handle work that repeats across a team or on each job. The workbench remains free and independent.
Invited trialWhen label checks must repeat for each job, LabelRules turns requirements described in plain English into approved selection and value-check rules. It starts with an invited trial. PatternBench does not publish rules into it.
Early accessWhen expected components depend on order data, KitProof builds checklists from approved plain English rules and checks each scan against them. It is in early access, with scope agreed at onboarding.
BEFORE YOU START
They can expose a pattern that accepts too much.
No. It covers the supplied cases only.
Up to 50, each containing up to 2,000 UTF-16 code units.
Save a local project JSON file explicitly. There is no automatic cloud save.
Patterns and replacement text are limited to 4,096 UTF-16 code units each; samples to 100,000. Up to 1,000 matches and 64 capture groups are supported, with 200,000 retained text/output code units. Cases are limited to 50 values of 2,000 code units each. Highlighted preview shows 6,000 sample code units and the table 100 matches; complete results are used for replacement and export. The engine is the current browser’s JavaScript RegExp, not PCRE, .NET or another dialect. Matching a shape does not prove that a real-world value exists. Syntax explanations show up to 512 elements. Project files are limited to 1.5 MB. Generated snippets do not include the workbench’s worker or result limits.
Patterns, sample text, replacement text, cases and results stay in this tab’s memory. Workers run on this device and are discarded after completion, edits, cancellation or the execution limit. Nothing is uploaded, put in a page address or saved automatically. Refreshing or closing the tab discards the work. Clipboard copies, extraction exports, generated code and project files can contain your actual values. Opening a project reads the selected file locally and replaces the workbench only after validation. The tool has no analytics; these public pages offer optional suite analytics separately.
ONE SMALL JOB, DONE WELL
Open the free tool and start with one known example.
